CE Pulp Molding 5m3/Min Baby Diaper Making Machine

Product Categories
Jinjiang Haina Machinery Co.,Ltd
Contact Now

CE Pulp Molding 5m3/Min Baby Diaper Making Machine

Brand Name : HAINA

Model Number : HNJX-LK500

Certification : CE/ISO

Place of Origin : JINJIANG, CHINA

MOQ : 1SET

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 70 Machines Per Year

Delivery Time : 5 Months After Receiving Deposit and Confirm Product Drawing

Packaging Details : Seaworthy Packing

Condition : New

Diaper size : M/L/XL/XXL

Machine color : Customized

Machine direction : Customized

Warranty : 1 year

Power : 250-300kw

Processing type : Pulp molding

Production capacity : ≥85%

Wastage : ≤3%

Contact Now

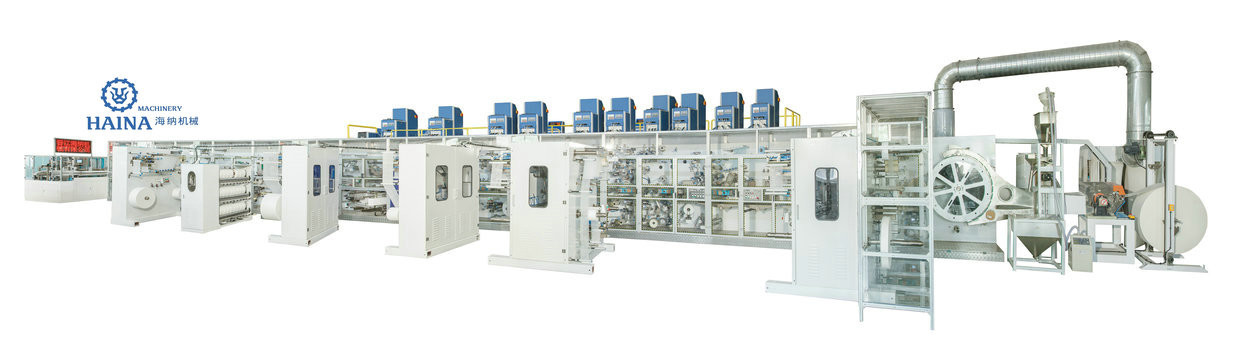

High Efficiency Full Automatic 500ppm Baby Diaper Production Line

Technical Parameters
Machine type Full Servo
Products M/L/XL/XXL
Products Structure and dimension The final products drawing to be confirm by both parties
Material components Top sheet NW, Upper Tissue, Fluff core + SAP, Lower tissue, Back sheet, Release paper and so on
Design speed 600pcs/min(Size M)
Production speed 500m/min
Defective rate ≤3%
Efficiency ≥85%
Power Supply 3 Phase 380V AC, 50HZ 3ph + N
Control Power Supply 24V DC
Power 250-300KW
Required Air Compressor 5m³/min,0.6-0.8Mpa
Dimension L~40m,W~9m,H~5m
Machine direction

Face to machine, from right to left

(According to the customer requirements).
Color Milk white (According to the customer requirements)

CE Pulp Molding 5m3/Min Baby Diaper Making Machine

Our After-sales Service:


1. The guarantee is one year.

After the machine arrive the buyer’s factory, we will send our engineer to the buyer’s factory to install and test the machine, and offer training for the buyer’s technicians about 20-30 days. The buyer should pay for visa fee, round trip tickets, hotel, food and salary USD80/day for each engineer.

2. The electrical components, the loss by nature and artificial damage created by unprofessional technician, not in the scope of the warranty.

3. We offer lifetime services. Whether the machine is under warranty or out of warranty, if the customer has any problem on machine operation, we will help the customer solve the problem by phone/fax/email immediately. If the customer request, we will send our engineer to the customer’s factory to fix problem, and the buyer should pay for visa fee, round trip tickets, hotel, food and salary USD80/day for each engineer.

Our Workshop

CE Pulp Molding 5m3/Min Baby Diaper Making Machine


Product Tags:

5m3/Min Baby Diaper Making Machine



CE Pulp Molding baby diaper equipment



500ppm baby diaper making machine


Wholesale CE Pulp Molding 5m3/Min Baby Diaper Making Machine from china suppliers

CE Pulp Molding 5m3/Min Baby Diaper Making Machine Images
